Open Source Ethernet: Ethernut
The Ethernut project is an Open Source platform for building
Embedded Ethernet Devices.
It's license provides royalty free, commercial use
in both open and closed source projects.
Read more...
XNUT-100 Programmable Gateway
XNUT-100 is a low-cost Ethernet single board computer with
industrialized form-factor, DIN-rail enclosure and lots of
connectivity options like RS-232, RS-422 and RS-485 interfaces.
A CAN version is available as
XNUT-105.
| $238.69 USD |
|
| €154.79 EUR |
 |
| $249.00 AUD |
|

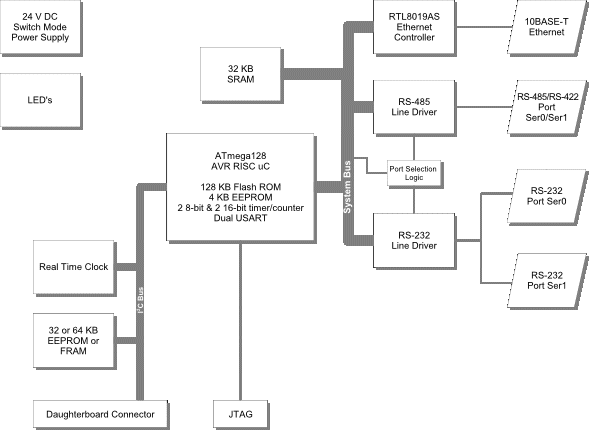

XNUT-100 is based upon the AVR ATmega128 CPU as it's core and the free
open source RTOS and TCP/IP stack
Nut/OS.
By using the freely available GNU GCC tool chain for Windows or Linux and
the open source RTOS and TCP/IP stack Nut/OS,
developers can quickly create custom Protocol Converter, Web
Server and Fieldbus Gateway devices.
The perfect solution for equipment manufacturers who want to integrate
any serial device into the world of Ethernet and TCP/IP .
Key Features
- Supported by open source development tools
- Free RTOS and TCP/IP stack available
- 10 Mbit Ethernet port
- RS-232, RS-485 and RS-422 ports
- DIN Rail mountable
- 10-30 V DC power supply
- Atmel ATmega128 CPU
- Realtek RTL8019AS Network Interface Controller
|
- 128 KB Flash ROM
- 32 KB static RAM
- Dual USART
- Status LEDs
- JTAG in-circuit programming & debugging port
- Ethernut 1.3 hardware compatible
|
