User Manual: MODG-100 Modbus/TCP Gateway

Contents

Important user information

This manual explains how to install, operate and configure a MODG-100. This device may only be used for the applications described in this document.

This manual is to be used with a MODG-100 with firmware version 2.12.

These instructions are intended for use by trained specialists in electrical installation and control and automation engineering, who are familiar with the applicable national standards and safety procedures.

Safety Precautions

Warning
ELECTRICAL HAZARD
  • This equipment must be installed and serviced only by qualified personnel. Such work should be performed only after reading this entire set of instructions.

  • Before performing visual inspections, tests, or maintenance on this equipment, disconnect all sources of electric power. Assume that all circuits are live until they have been completely de-energized, tested, and tagged. Pay particular attention to the design of the power system. Consider all sources of power, including the possibility of backfeeding.

  • Apply appropriate personal protective equipment and follow safe electrical practices.

  • Turn off all power supplying the equipment in which the MODG-100 is to be installed before installing, wiring or removing the MODG-100.

  • Always use a properly rated voltage sensing device to confirm that power is off.

  • The successful operation of this equipment depends upon proper handling, installation, and operation. Neglecting fundamental installation requirements may lead to personal injury as well as damage to electrical equipment or other property.

Failure to follow these instructions could result in death or serious injury!

Document conventions

Throughout this manual we use the following symbols and typefaces to make you aware of safety or other important considerations:

Warning

Indicates a potentially hazardous situation that, if not avoided, could result in death or serious injury.

Caution

Indicates a potentially hazardous situation that, if not avoided, could result in damage to equipment.

Important

Indicates information that is critical for successful application and understanding of the product.

Note

Provides other helpful user information that does not fall in above categories.

Tip

Provides supplemental user information.

Acronym

This typeface is used to introduce acronyms or product names.

Command

This typeface is used to represent commands, prompts, input fields and filenames. In the context of programming it is used for functions, variable names, constants or class names.

Placeholder

This typeface is used to represent replacable text. Replaceable text is a placeholder for data you have to provide, like filenames or command line arguments.

User input

This typeface is used to represent data entered by the user or buttons.

Screen output

Screen output or program listing

Introduction

The MODG-100 is a Modbus/TCP to Modbus Serial Line gateway.

The gateway features an Ethernet port and one serial port which can be configured as either RS-232, RS-485 or RS-422 port.

It can be mounted on a DIN rail.

Usage and configuration of the gateway is simple and conveniently performed using a web browser which connects to the embedded web server.

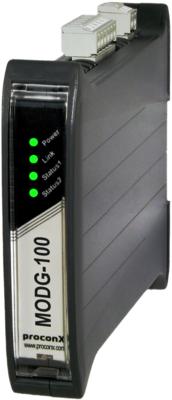

MODG-100

Possible areas of application are:

  • PLC connection

  • Operator panel interfacing

  • HMIs

  • SCADA integration

  • Remote control & monitoring

  • Data logging

Features

The MODG-100 gateway provides the following key features:

  • Modbus/TCP protocol (Ethernet)

  • Modbus RTU and ASCII protocols

  • RS-232, RS-485 or RS-422, software configurable

  • Embedded web server for easy configuration and commissioning using a web browser

  • Firmware upgradeable via Ethernet

  • DIN rail mountable

  • 24 V DC (10-30 V) power supply

  • Status LEDs for power, Ethernet link, device status and communication status

Quick start checklist

  • Read this set of instructions properly and in its entirety.

  • Mount the unit.

  • Connect the power. Do not connect yet serial ports.

  • Configure the Ethernet communications settings with a web browser (using an Ethernet crossover cable) or with a terminal program like HyperTerminal (using a null modem cable)

  • Configure the serial line communication settings.

  • Configure the operational aspects of the device.

  • Wire serial line interfaces.

Description

The power and RS-485/RS-422 terminals are placed on the top side of the unit. The RS-232 and Ethernet connectors are placed on the bottom side of the unit as shown in the following illustration:

MODG-100 connectors

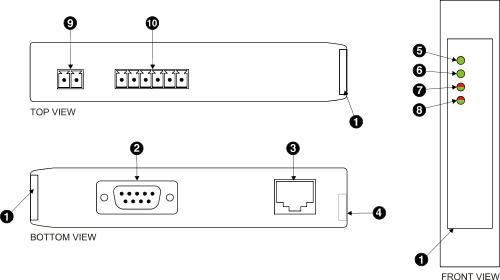

Figure 1. Location of connectors
(1)  Clear front cover (2)  RS-232 connector (3)  Ethernet connector (4)  DIN rail clip (5)  Power LED (6)  Ethernet link LED (7)  Device status LED (8)  Communication status LED (9)  Power terminals (10)  RS-485/RS-422 terminals

LED indicators

Four LEDs located at the front panel indicate the status of the device. The LEDs assist maintenance personnel in quickly identifying wiring or communication errors.

A LED test is exercised at power-up, cycling each LED off, green and then red for approximately 0.25 seconds. At the same time the power-on self test of the device is performed.

The following table outlines the indicator condition and the corresponding status after the power-on self test has been completed:

Table 1. LED diagnostic codes
LED Function Condition Indication

Power

Power

Off

No power applied to the device.

Green

Power supply OK

Link

Ethernet link

Off

No Ethernet link

Green

Ethernet link OK

Status1

Device status

Off

The device has an unrecoverable fault; may need replacing.

Flashing green
1 s rate

Device operational but needs commissioning due to configuration missing, incomplete or incorrect.

Green

The device is operating in normal condition.

Flashing red
1 s rate

Device operational but has a fault listed which requires acknowledgment.

Red

The device has an unrecoverable fault; may need replacing. Flashing sequence and rate of Status2 LED indicates fault class.

Status2

Communication status

Off

No Modbus/TCP connection.

Green

Modbus/TCP connection established.

Installation

Regulatory notes

icons/warning.png
  1. The MODG-100 is suitable for use in non-hazardous locations only.

  2. The MODG-100 is not authorized for use in life support devices or systems.

  3. Wiring and installation must be in accordance with applicable electrical codes in accordance with the authority having jurisdiction.

  4. This is a Class A device and intended for commercial or industrial use. This equipment may cause radio interference if used in a residential area; in this case it is the operator’s responsibility to take appropriate measures.

  5. The precondition for compliance with EMC limit values is strict adherence to the guidelines specified in this set of instructions. This applies in particular to the area of grounding and shielding of cables.

FCC Notice (USA only)

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

Industry Canada Notice (Canada only)

This Class A digital apparatus complies with Canadian ICES-003.

Unpacking, handling and storage

icons/important.png
  1. Please read this set of instructions. carefully before fitting it into your system.

  2. Keep all original packaging material for future storage or warranty shipments of the unit.

  3. Do not exceed the specified temperatures.

Before connecting anything

icons/warning.png
  1. Before installing or removing the unit or any connector, ensure that the system power and external supplies have been turned off.

  2. Check the system supply voltage with a multimeter for correct voltage range and polarity.

  3. Connect the power supply cable and switch on the system power. Check if the Power LED is lit.

  4. Turn off system power.

  5. Connect all I/O cables.

  6. Once you are certain that all connections have been made properly, restore the power.

DIN rail mounting and removal

The MODG-100 gateway is designed to be mounted on a 35 mm DIN rail according to DIN/EN 50022. The enclosure features a 35 mm profile at the back which snaps into the DIN rail. No tools are required for mounting. Please observe the rules outlined in [Mounting].

Clip to DIN rail

To mount the unit on a DIN rail, slot the top part of the MODG-100 into the upper guide of the rail and lower the enclosure until the bottom of the red hook clicks into place.

Removal from DIN rail

To remove the MODG-100 from the DIN rail, use a screw driver as a lever by inserting it in the small slot of the red hook and push the red hook downwards. Then remove the unit from the rail by raising the bottom front edge of the enclosure.

Mounting rules

The enclosure provides protection against solid objects according to IP 20 / NEMA Type 1 protection rating. When mounting the unit observe the following rules:

icons/caution.png
  • No water splash and water drops

  • No aggressive gas, steam or liquids

  • Avoid dusty environments.

  • Avoid shock or vibration

  • Do not exceed the specified operational temperatures and humidity range.

  • Mount inside an electrical switchboard or control cabinet.

  • Make sure there is sufficient air ventilation and clearance to other devices mounted next to the unit.

  • Observe applicable local regulations like EN60204 / VDE0113.

Powering the MODG-100

icons/warning.png

Before connecting power please follow the rules in [Safety] and [Connecting].

Power is supplied via a 3.81 mm 2-pin pluggable terminal block located at the top side of the mounted unit (refer to [DescriptionDiagram]). The following table and picture shows the power terminal socket pinout:

Power supply connector pinout
Power supply pinout
Pin Signal Function

1

V+

Positive voltage supply (10 - 30 V DC)

2

V-

Negative voltage supply, DC power return

Caution Make sure that the polarity of the supply voltage is correct before connecting any device to the serial ports! A wrong polarity can cause high currents on the ground plane between the V- power supply pin and the serial port ground pins, which can cause damage to the device.

Wiring the RS-485/422 interface

The RS-485/422 port is used for integrating the MODG-100 into a two-wire or four-wire Modbus over Serial Line network. The use of either the RS-485 or RS-422 interface must be configured using the web interface (See [ModbusConfig]). The MODG-100 is a Modbus Master device on this interface.

The RS-485 and RS-422 signals are located at the 3.81 mm 6-pin pluggable terminal block on the top side of the mounted unit (refer to [DescriptionDiagram]). The following table and picture shows the pinout:

RS-485/RS-422 connector pinout
RS-485 pinout
RS-485

RS-422 Pinout
RS-422
Pin RS-485 signal RS-422 signal Description

3

GND

GND

Modbus Common

4

D+

TX+

Modbus D1 or TXD1

5

D-

TX-

Modbus D0 or TXD0

6

GND

Modbus Common

7

RX+

Modbus RXD1

8

RX-

Modbus RXD0

  • Line termination is required and is typically done with a 120 Ohm 1/4 W resistor. For RS-485 operation the bus must be terminated at both ends. For RS-422 operation a termination resistor must be inserted between the RX+/RX- signals.

  • Maximum number of RS-485 nodes without repeater is 32.

  • Stub connections off the main line should be avoided if possible or at least be kept as short as possible. Stub connections must not have terminating resistors.

  • Maximum cable length to 1200 m (4000 ft).

  • To assure a high degree of electromagnetic compatibility and surge protection the cable should be twisted pairs and shielded. An additional cable conductor or pair may be used for the GND reference.

Caution Do not connect the cable shield to the GND pins! Use an external chassis ground connection to terminate the shield.

Wiring the RS-232 interface

The RS-232 port can alternativly be used for serial communication to a Modbus Slave device instead of RS-485. The use of the RS-232 interface must be configured using the web interface (See [ModbusConfig]). The MODG-100 is a Modbus Master device on this interface.

The Modbus RS-232 connector is a male 9-pin D-sub type located at the bottom side of the mounted unit (refer to [DescriptionDiagram]). It has industry standard EIA-574 data terminal equipment (DTE) pinout as shown in the following table and picture:

Modbus RS-232 connector pinout
RS-232 DTE pinout
Pin Signal Function Direction

1

DCD

(unused)

in

2

RXD

Receive data

in

3

TXD

Transmit data

out

4

DTR

(unused)

out

5

GND

Signal ground

6

DSR

(unused)

in

7

RTS

(unused)

out

8

CTS

(unused)

in

9

RI

(unused)

in

  • Maximum cable length is 15 m (50 ft) or a length equal to a line capacitance of 2500 pF, both at the maximum standard bit rate of 20 kbps. If operating at higher bit rates the maximum cable length drops to 3 m (10 ft) at a bit rate of 57.6 kbps.

  • To assure a high degree of electromagnetic compatibility and surge protection the RS-232 cable should shielded. The shield shall be connected to an external chassis ground at the either or both ends, depending on the application.

  • The shield must not be connected to the GND pin.

Note To connect the MODG-100 to a PC (Personal Computer) or any other device with data terminal equipment (DTE) pinout you need a null-modem or cross-over cable.

Connecting Ethernet

The following table describes the 10BASE-T Ethernet RJ-45 connector pinout:

Ethernet connector pinout
RJ-45 pinout
Pin Signal Function

1

TX+

Non-inverting transmit signal

2

TX-

Inverting transmit signal

3

RX+

Non-inverting receive signal

4

Internal termination network

5

Internal termination network

6

RX-

Inverting receive signal

7

Internal termination network

8

Internal termination network

  • We recommend to use Category 5 UTP network cable.

  • Maximum cable length is 100 m (3000 ft).

Ethernet & IP configuration

Before configuring the MODG-100, obtain a unique static IP address, subnet mask, and default gateway address from your network administrator.

The factory default IP address of the MODG-100 is 169.254.0.10 which is in the Automatic Private IP Addressing (APIPA) address range.

There are several methods of configuring the unit’s IP address:

  1. Removing your PC from your corporate network and using a cross-over network cable (see [ConfigCrossOver]).

  2. Via the Serial Port 1 and a terminal program like HyperTerminal (see [ConfigTerminal]).

  3. Leaving your PC connected to your corporate network and temporarily changing the IP settings on your PC to match the subnet of the MODG-100 (see [ConfigChangeIP]).

Note In order to connect to the MODG-100 via TCP/IP, your PC must be on same IP subnet as the gateway. In most situations this means that the first three numbers of the IP address have to be identical.

IP setup using a web browser and a cross-over network cable

This method applies only to operating systems like Windows, which support APIPA (Automatic Private IP Addressing). It also requires your PC to be configured for DHCP. If your computer is configured with a static IP address, follow the procedure in [ConfigChangeIP].

  1. Disconnect your PC from your corporate network. If your computer is configured for DHCP it should now automatically fall back to use a default IP address from the APIPA range 169.254.x.x (Windows PCs only).

  2. Connect an Ethernet crossover cable from the MODG-100 to the computer.

  3. Start Internet Explorer.

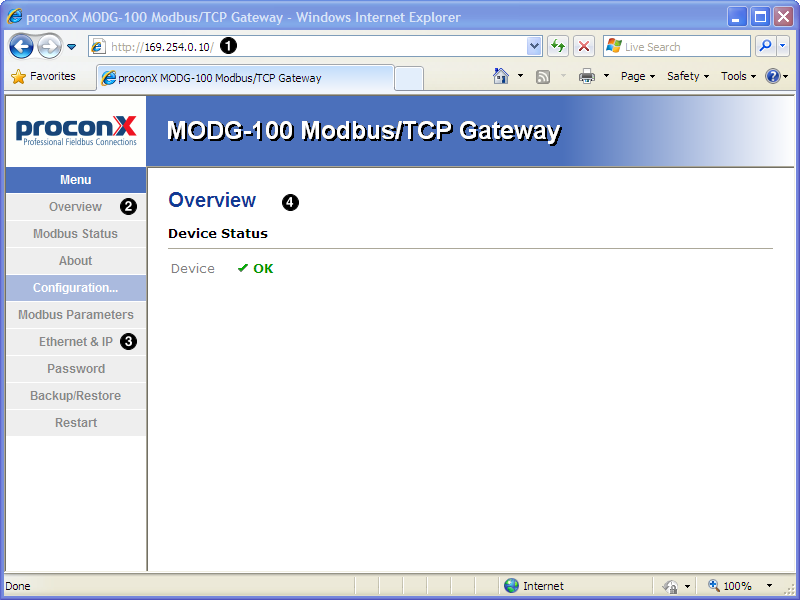

  4. In the address box, type 169.254.0.10 and then press Enter.

  5. Click Configuration… and then Ethernet & IP in the menu on the left side of the page.

  6. Enter the IP address, subnet mask, and gateway address assigned to your MODG-100, then click Save.

  7. Reconnect your computer to your corporate network.

IP setup using a terminal program like HyperTerminal

  1. Connect a null modem RS-232 cable between your PC and the MODG-100's Serial Port 1.

  2. In Windows XP, click Start, point to All Programs, point to Accessories, point to Communications, and then click HyperTerminal.

  3. When HyperTerminal starts, it opens a dialog box and asks for a name for the new connection. Enter a name (for example, deviceconfig) then click OK.

  4. The Connect to dialog opens. Select the COM port you will be using in the Connect using drop-down list box, then click OK.

  5. Select 9600, 8, None, 1, None in the COM Properties dialog, then click OK.

  6. HyperTerminal is now connected to the serial line.

  7. Keep the space bar pressed in HyperTerminal and power-cycle your device at the same time.

  8. A menu should appear after one or two seconds showing device information, the current IP configuration and a > prompt.

  9. Type SETIP, then press Enter within 10 seconds after the prompt is shown:

    Diagnostic mode
  10. The device will show current values and prompt for new values for IP address, net mask and gateway address. Enter the new values and press Enter. A key press must be received at least every 10 seconds otherwise the device will go back to RUN MODE and resume normal operation.

  11. The gateway will return to the main prompt. Type X and press Enter to leave DIAG MODE and resume normal operation indicated with RUN MODE.

Temporarily changing the IP settings on your PC

This method involves manually assigning an IP address to your PC in the same subnet as the gateway. The default subnet of the gateway is 169.254.0.0/16.

  1. Connect the MODG-100 to your Ethernet network.

  2. On a Windows PC, open the Control Panel and double-click on Network Connections. Right-click on the Network Connection associated with your network adapter and select Properties:

    Windows local area connection context menu

    This will show the Local Area Connection Properties Dialog:

    Local area connection properties dialog

  3. Select the Internet Protocol (TCP/IP) entry and click on Properties to open the TCP/IP Properties dialog as shown below:

    Internet protocol (TCP/IP) properties dialog

  4. Write down your current settings so they can be restored later.

  5. Select Use the following IP address and configure a static IP address in the same subnet as the device, for example 169.254.0.1 and the subnet mask 255.255.0.0. Click OK to save the changes.

  6. Start Internet Explorer.

  7. In the address box, type 169.254.0.10 and then press Enter.

  8. Click Configuration… and then Ethernet & IP in the menu on the left side of the page.

  9. Enter the IP address, subnet mask, and gateway address assigned to your MODG-100, then click Save.

  10. Restore your computer’s original settings.

Web browser based management

The MODG-100 incorporates an embedded web server. This allows you to connect to the device and monitor and configure it using a web browser. Most browsers should work, provided they support JavaScript. We recommend Internet Explorer 6.0 or higher.

Connecting to the MODG-100

Once you made sure that your PC is configured to be on the same subnet as the MODG-100, start your web browser. In the address box, type the IP address of your device (169.254.0.10 is the default), and then press Enter. (See [EthernetConfig])

The web browser will establish communication with the embedded web server and an overview page similar to the following picture will appear:

Web browser access
Figure 2. Device management and configuration via the web browser
(1)  Gateway IP address (2)  Main menu (3)  Configuration sub-menu (4)  Information area

Use the menu bar shown on the left side to navigate the different pages.

Note In order to connect to the MODG-100 via TCP/IP, your PC must be on same IP subnet as the gateway. In most situations this means that the first three numbers of the IP address have to be identical.

Monitoring and diagnostic

The MODG-100 offers several web pages which allow monitoring of the status of the different communication networks and the device performance.

Device status

The Overview page shows the principal device status as shown in the following picture:

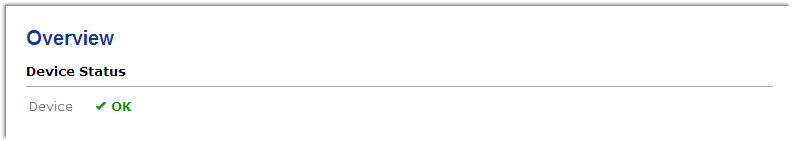

Overview screen
Figure 3. Overview page

The value shown in the Device row represents the device status register which keeps track of run-time faults. All run-time faults are latched and must be reset by the user. The following faults can be listed here:

OK

The device is fault free.

Watchdog reset

This warning indicates that the device was reset by it’s internal watchdog supervision circuit.

Brown out reset

This warning indicates that the device was reset by it’s internal supply voltage monitoring circuit. This fault occurs when the supply voltage drops below the lower limit.

Device out of memory

This warning indicates that the internal dynamic memory has been exhausted and due to this a certain function could not be completed.

Device configuration data write failure

This alarm indicates that the configuration data could not be written to the non-volatile memory. Configuration data changes will be lost once the device is power-cycled or reset.

Reset to factory defaults

This alarm indicates that the device' configuration data was reset to factory defaults. The device requires re-commissioning.

Modbus connection status

The Modbus Status page shows status and statistics about the Modbus traffic. These values provide valuable information used to troubleshoot Modbus network problems. This page is automatically updated every 5 seconds.

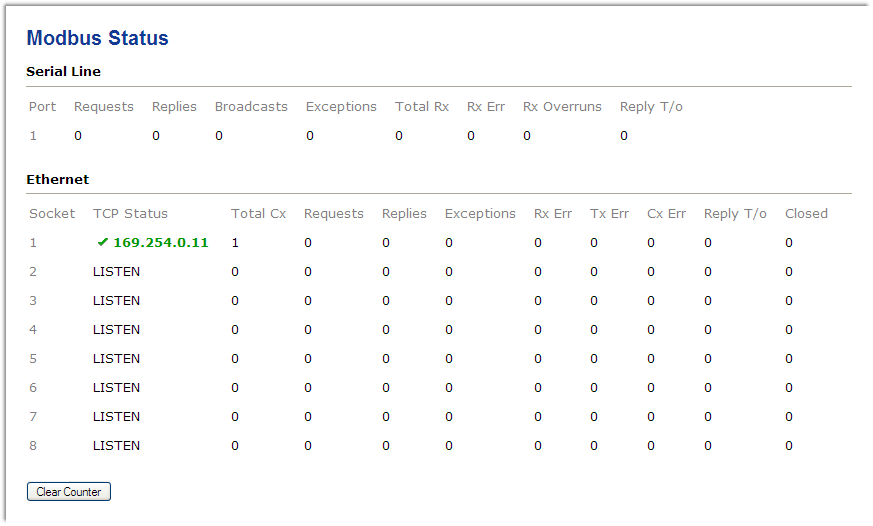

Modbus status screen
Figure 4. Modbus status page
Note This page shows accumulated readings since the MODG-100 was last activated or reset. If power to the MODG-100 is lost, all cumulative values are reset to zero.

The following statistics are maintained:

TCP status

Status of the Modbus/TCP connection as per TCP finite state machine (refer to RFC 793). If a peer is connected the status indicates LISTEN. If a peer is connected, it’s IP address is shown.

Total Cx

A counter that increments each time a new Modbus/TCP connection is established.

Requests

Number of request messages processed including broadcast messages. Value represents the standard Modbus Return Slave Message Count diagnostic counter.

Replies

A counter that is incremented each time a response message is processed. This value includes exception responses.

Broadcasts

Number of broadcast messages processed. Value represents the standard Modbus Return Slave No Response Count diagnostic counter.

Exceptions

Number of exception responses processed. Also includes exception errors detected in broadcast messages even no reply is transmitted in that case. Value represents the standard Modbus Return Slave Exception Error Count diagnostic counter.

Total Rx

Number of valid messages the device has detected regardless whether they are addressed to it or not. Value represents the standard Modbus Return Bus Message Count diagnostic counter.

Rx Err (Modbus serial line)

A counter that increments each time a message is received with an invalid CRC or otherwise invalid frame or characters. Messages with this error are discarded and not replied to. Typically the result of wiring issues or wrong serial line parameters like baud rate. Value represents the standard Modbus Return Bus Communication Error Count diagnostic counter.

Rx Err (Modbus/TCP)

Number of messages received with incorrect MBAP header, incorrect length or a invalid frame structure. The connection is closed after such an error has occurred.

Tx Err

Number time-outs occurred while attempting to send a message. The connection is closed after such an error has occurred.

Rx Overruns

Number of character overrun conditions detected. This error is caused if more characters are received than a Modbus frame can hold. Malformed and incompatible Modbus frames or reflections on the serial line can cause this error condition. Value represents the standard Modbus Return Bus Character Overrun Count diagnostic counter.

Reply T/o

Number of time-outs occurred while waiting for or receiving a response.

The cumulative diagnostic data is reset when the device is power cycled or reset. The data is also reset by pressing the Clear Counter button.

Finding the firmware version and serial number

Click on the About menu entry on the menu bar to show the product information as shown below:

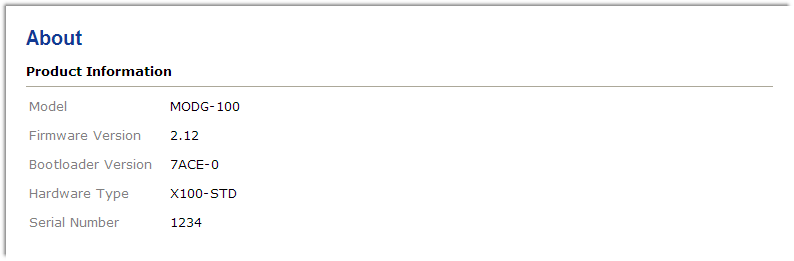

About Screen
Figure 5. About page

This product information is important for service and support inquiries. The following product information is provided:

Model

The model name of the product. The Model defines the functionality of the product.

Firmware Version

The firmware version that is installed.

Bootloader Version

The version of the Ethernet bootloader. This is relevant for firmware upgrades.

Hardware Type

Type of hardware the MODG-100 is based on. The Type is relevant to identify the device for regulatory compliance.

Serial Number

The serial number of the MODG-100. The serial number is specific to your device.

Configuring and commissioning

The configuration pages are accessed by clicking on the Configuration… menu entry on the menu bar which then expands a configuration sub-menu. All configuration settings are kept in the device' non-volatile memory.

Note If you make changes to any settings, remember to save each page before changing to a different page!

Configuring Ethernet and IP

Select the Configuration→Ethernet & IP sub-menu from the menu bar to open the Ethernet and IP settings which are shown below:

Ethernet and IP settings screen
Figure 6. Ethernet and IP settings page

The following Ethernet parameters are shown:

MAC Address

The device' unique MAC address. This number is hard coded and cannot be changed.

The following Internet protocol (IP) settings can be entered:

DHCP Client

Select Enabled to have the IP address assigned via DHCP. When enabling this option it is important to have a reliable DHCP server available in the network at all times. The MODG-100 will not communicate without an IP address. A missing IP address is indicated with a distinct LED diagnostic code.

IP Address

The static IP address assigned to this device if DHCP is not used. This IP address is different to the IP address assigned through DHCP.

Subnet Mask (also known as network mask)

If you have a router, enter the subnet mask for the segment to which this device is attached.

Gateway Address

If your network segment has a router, enter its IP address here. Otherwise leave the address as 0.0.0.0.

Once you click Save the new settings are stored and applied instantly. Existing TCP/IP connections to the device are terminated and must be re-established using the new IP address.

The new settings are confirmed with the following page:

IP settings changed confirmation screen
Figure 7. IP settings changed to static IP confirmation
Important Please write down the new IP address so you are able to communicate with the device in the future!
DHCP senabled confirmation screen
Figure 8. IP settings changed to DHCP confirmation

Configuring Modbus network

The Modbus parameters for the serial line can be configured to match the serial line configuration of the other Modbus network nodes.

Select the Configuration→Modbus Parameters sub-menu from the menu bar to open the Modbus parameter settings which are shown below:

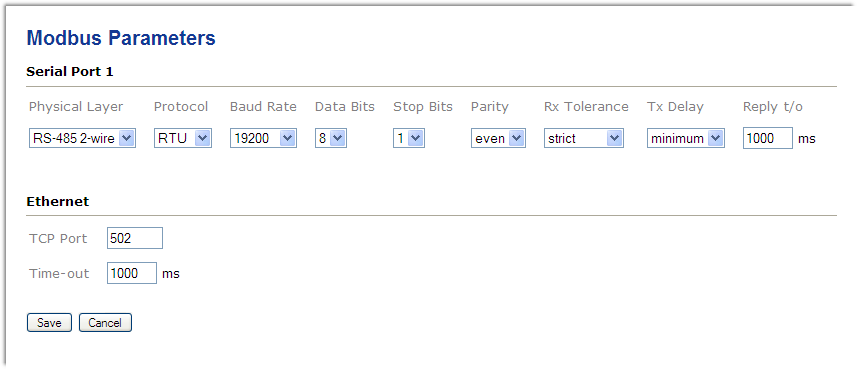

Modbus parameters screen
Figure 9. Modbus parameters page

The following Modbus parameters can be entered:

Physical Layer

A serial port can utilise the RS-485 (two-wire) , RS-422 (4-wire) or RS-232 interface. The RS-485 interface is selected as default. Depending on the physical layer either the D-sub (RS-232) connector or the terminal block connector (RS-485/RS-422) of the MODG-100 is utilized.

Protocol

Modbus RTU or ASCII transmission mode can be selected. Modbus RTU is the most commonly used protocol and the default setting.

Baud rate

9600 and 19200 are the most common baud rates for Modbus. 19200 is the default setting.

Data bits

Can be configured to be 7 or 8. Must be set to 8 data bits for Modbus RTU.

Stop bits

Can be configured to be 1 or 2. The Modbus Specification mandates that 2 stop bits are configured when using no parity.

Parity

Changes parity mode to either none, even or odd. The default parity mode for Modbus is even parity.

Rx Tolerance

If precise and Modbus conform detection of the silence interval is desired, then this should be set to strict which is the default. The timing for the silence detection can be relaxed with this setting by adding small increments. This enables the MODG-100 to communicate with Modbus devices which may not be fully compliant to the Modbus specification in that respect.

Tx Delay

Modbus defines a minimum spacing between two Modbus messages. This setting enforces additional time to pass before a new message is transmitted by the MODG-100 unit. Such additional delay may be required in circumstance where a Modbus device requires additional processing time before they can receive the next message.

Reply t/o

The time in milliseconds the MODG-100 waits for a response before the transaction is aborted and an error is raised. Default is 1000 ms which is recommended in the Modbus Specification for a bitrate of 9600 bps. It is important that the time-out time is sufficiently larger than the time required to transmit, process and receive a message over the serial line.

TCP Port

TCP port number to be used by the Modbus/TCP protocol. Usually the port number remains unchanged and defaults to 502 as per Modbus Specification.

Once you click Save the new settings are stored and applied instantly. A confirmation message is shown.

Important It is of great importance to ensure that there is not two devices with the same Modbus address. In such a case, an abnormal behavior of the whole serial bus can occur, the master being then in the impossibility to communicate with all present slaves on the bus.
Important The protocol (RTU or ASCII) and serial port parameters must be the same for all devices on a Modbus serial line.

Remote restarting the device

You can perform a remote restart of the device from the web interface. A remote restart is similar to power cycling the device. Possibly connected clients are disconnected and communication is interrupted until the device has rebooted.

To perform a remote restart, click on the Configuration sub-menu and then click on the Restart menu entry. This will open the device restart page as shown below:

Restart device screen
Figure 10. Restart device page

Click on the Restart button to perform a restart of the device. The restart is confirmed with the following notification:

Restart confirmation screen
Figure 11. Restart confirmation page

Please allow a few seconds before continuing working with the device as it has to fully start-up first, before being able to respond to further web browser requests.

Note After a remote restart a Watchdog reset alarm is shown on the device' home page. This is a side-effect of the remote restart procedure and the alarm shall be ignored and cleared.

Backup and restoring of configuration settings

The MODG-100 allows configuration settings to be uploaded onto a PC.

This is a beneficial for archiving purposes but also allows easy deployment of similar devices by the means of loading settings from a previously stored reference device.

Backup and Restore Screen
Figure 12. Backup/Restore page

To store the configuration settings on your PC, click on the Configuration sub-menu and then click on the Backup/Restore menu entry. Then click on Backup. Your web browser will open a file download dialog which allows you to save the configuration file on your PC. The file name of the configuration file reflects the model name and the serial number and has the .config extension.

Note In case the configuration is password protected, the username and password will not be stored in the configuration file!

To restore the settings from a configuration file, click on the Browse button and select a .config file matching the model of your device. Then click on Restore.

There are two options to restore a previously saved configuration set:

Restore IP Settings un-checked

Default. All but the IP settings are restored. This option is useful when device settings shall be duplicated onto another device which will operate on the same network and hence requires its own distinct IP settings.

Restore IP Settings checked

The complete settings are restored. This option is useful if a device is replaced with a new device and the new device should inherit the previously set IP address.

The successful restoration of configuration settings is confirmed with the following message:

Restore Screen

In case of an error message, the settings may have only been partially restored and it is important to review all the settings for correctness.

Password protection

Access to the configuration pages can be protected with a password. To configure a password, click on the Configuration sub-menu and then click on the Password menu entry.

Password Screen
Figure 13. Password page

To enable a password, check the Enable Password checkbox and enter a user name and a password in the form. The password must be entered twice to make sure it is typed correctly. Click Save to confirm the password.

Only one password protected user can be configured. If a new user and password is entered the previous user name is deleted.

Important Make sure you record or memorize the username and password before you press the Save button! The only way to recover from a lost password is by resetting the device to factory defaults which requires physical access to the device.

To log on to password protected configuration pages, click on a configuration menu entry. The web browser will open a password dialog similar to the one shown below:

Authentication Dialog
Figure 14. Authentication dialog

To remove password protection, log on, uncheck the Enable Password checkbox and click Save to confirm.

Firmware upgrade

The unit’s firmware can be upgraded via Ethernet.

Please contact us for an Application note describing the upgrade procedure and for required software tools.

Decommissioning

Before disconnecting the MODG-100 unit please follow the rules in [Safety].

Disconnecting

icons/warning.png
  1. Ensure that the system power and external supplies have been turned off.

  2. Disconnect power supply plug.

  3. Disconnect all I/O cables.

  4. Remove the MODG-100 from the DIN rail following the procedure described in [removal].

Disposal

icons/AJ_Recycling_Symbol.png

This product must be disposed of at a specialized electronic waste recycling facility. Do not dispose of in domestic waste.

Appendix A: Specifications

Product name

MODG-100

Interfaces

Ethernet

1

Serial ports

1, software configurable as either 1 x RS-232 or 1 x RS-485 or 1 x RS-422

User interface

LED indicators

Power (green), Ethernet link (green), 2 status (bi-color red/green)

Monitoring & configuration

Web browser based

Diagnostic

High availability features

Watchdog supervision, brown-out detection

Serial Port RS-232 interface

Connector

male 9-pin D-sub, DTE, EIA-574 pin-out

Physical layer

EIA-232-F

Isolation

non-isolated

Signals

RXD, TXD, RTS, CTS, DTR, DSR, DCD, RI

Speed

300, 600, 1200, 2400, 4800, 9600, 19200, 57600, 115200 bps

Protocols

Modbus RTU (master), Modbus ASCII (master)

Serial Port RS-485/RS-422 interface

Connector

3.81 mm 6-pin pluggable terminal block header

Physical layer

EIA-485-A, 2-wire or 4-wire

Isolation

non-isolated

Speed

300, 600, 1200, 2400, 4800, 9600, 19200, 57600, 115200 bps

Max. number of nodes

32

Protocols

Modbus RTU (master), Modbus ASCII (master)

Ethernet port

Connector

8-pin RJ-45 socket for Cat 5 UTP

Physical & Data Link Layer Layer

IEEE 802.3i 10BASE-T

Isolation

1.5 kV galvanic

Speed

10 Mbit/s

Max. cable length

100 m (328 ft)

Ethernet frame types

802.3

Protocols

Modbus/TCP slave, HTTP, IP, TCP, DHCP, NBNS, ARP

Concurrent connections

8 Modbus/TCP slave, 2 HTTP

Power supply

Connector

3.81 mm 2-pin pluggable terminal block header

Voltage

10-30 V DC

Current

30 mA typical @ 24 V DC

Intrinsic consumption

750 mW

Electromagnetic compatibility

Emissions (radiated and conducted)

AS/NZS CISPR 22 / EN 55022 (Class A)

Immunity

EN 55024

Electrostatic discharge

EN 61000-4-2

Radiated RF

EN 61000-4-3

Fast transients

EN 61000-4-4

Conducted RF

EN 61000-4-6

Enclosure

Material

Self-extinguishing PC/ABS blend (UL 94-V0)

Mounting

35 mm DIN rail (EN 60715)

Classification / Type rating

IP 20 / NEMA Type 1

Cooling

Convection

Environmental

Operating temperature

0 to 60 °C / 32 to 140 °F

Storage temperature

-25 to 85 °C / -13 to 185 °F

Humidity rating

10 to 95% relative humidity, non condensing

Operating ambience

Free from corrosive gas, minimal dust

Physical

Dimensions

101 x 22.5 x 120 mm / 3.98 x 0.886 x 4.72 in

Weight

0.12 kg / 0.265 lb

Compliance

Australia

C-Tick

Europe

CE, RoHS

USA

FCC Part 15 (Class A)

Canada

ICES-003 (Class A)

Dimensions

Dimension Drawing
Figure 15. Enclosure dimensions

Document revision history

2009-03-05

Initial Release

2011-04-06

Editorial Changes.


No part of this material may be reproduced or transmitted in any form or by any means or used to make any derivative work without express written consent from the copyright holders.

proconX is a trademark of proconX Pty Ltd. Modbus is a registered trademark of Schneider Automation Inc. All other product and brand names mentioned in this document may be trademarks or registered trademarks of their respective owners.

Disclaimer

proconX Pty Ltd makes no warranty for the use of its products, other than those expressly contained in the Company’s standard warranty which is detailed in the Terms and Conditions located on the Company’s Website. The Company assumes no responsibility for any errors which may appear in this document, reserves the right to change devices or specifications detailed herein at any time without notice, and does not make any commitment to update the information contained herein. No licenses to patents or other intellectual property of proconX are granted by the Company in connection with the sale of proconX products, expressly or by implication. proconX products are not authorized for use as critical components in life support devices or systems.

Support & product feedback

We provide an electronic support and feedback system for our proconX products. It can be accessed through the following web link:

Your feedback and comments are always welcome. It helps improving this product.

Contact

For further information about the MODG-100 product or this document please contact us at:

proconX Pty Ltd
Unit 7 / 14 Argon St
Sumner QLD 4074
Australia
Tel +61-7-3376 3911
Website: http://www.proconx.com/modg100

Terms of Use | Terms of Sale | Privacy Policy | Info & Contact     © 2005-2017 proconX Pty Ltd
